50Hz 60Hz 6300A GFM Non Segregated Medium Voltage Busway
product detail
50Hz 60Hz 6300A GFM Non Segregated Medium Voltage Busway
Description
| Conductor Type: | Enclosed Busduct | Frequency: | 50Hz/60Hz |
| Rated Voltage: | 3.6-40.5KV | IP: | IP54 |
| Product Series: | Nonsegregated Busduct/ Segregated Phase Busduct | Design Criteria: | GB/T 8349 |
| Product Type: | TMY/LMY | ||
| High Light: | 6300A Non Segregated Busduct,60Hz Medium Voltage Busway,6300A Medium Voltage Busway | ||
GFM non - segregated busway , 630A - 6300A , 50Hz , 60Hz

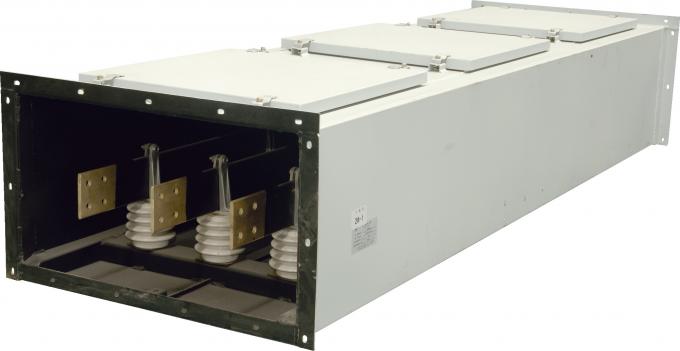

The conductor comes in rectangular, U-shaped or tubular copper or aluminum profiles. Aluminum housings provide high quality shielding protection. The cable heat tracer ensures that the internal insulation properties are not affected by external factors, greatly improving stability. The busway system can be equipped with a portable or on-line conductor temperature detection unit to maximize the safety of the entire system.
| Standards | IEC364-5-54/GB/T8349-2000/JB/T9639-1999 | ||||
| Ambient | ℃ | ||||
| Relative humidity | Daily averages ≤ 95%. Monthly average ≤ 90% | ||||
| IP | IP40, IP54 | ||||
| Rated voltage | kV | 3.15 | 6.3 | 10.5 | 35 |
| Max operating voltage | kV | 3.6 | 7.2 | 12 | 40.5 |
| Insulation level | kV | 25/40 | 32/60 | 42/75 | 100/185 |
| Rated frequency | Hz | 50(60) | |||
| Rated operating current | Dimension (W×H)(mm×mm) | ||||
| 1000-3000 | A | I 750×400 II 850×350 | I 900×560 II 1060×460 | I 900×560 II 1060×460 | I 1500×920 II 1800×880 |
| 3500 | A | I 750×440 II 850×480 | I 900×560 II 1060×460 | I 900×560 II 1060×460 | |
| 4000 | A | I 750×440 II 850×480 | I 900×560 II 1060×460 | I 900×560 II 1060×460 | |
| 4500 | A | I 750×440 | I 1000×560 | I 1000×560 | |
| 5000 | A | I 1350×500 | I 1500×600 | I 1500×600 | |
| 6300-6800 | A | I 1350×500 | I 1500×600 | I 1500×600 | |
GFM Series non-segregated phase busway is suitable for transmission system, which provides consistent strength and high short-circuit ratings.
